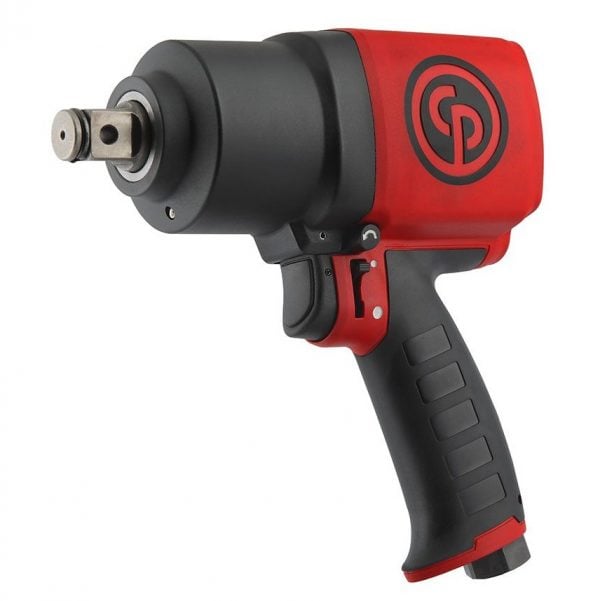

Chicago Pneumatic CP7769 Impact Wrench 3/4"

Add to cart to calculate shipping
(No reviews yet) Write a Review
Chicago Pneumatic CP7769 Impact Wrench 3/4"

Chicago Pneumatic CP7769 Impact Wrench 3/4"


Powerful impact for General Maintenance
Maximize operator comfort: lightweight and balanced design
Energy savings: low air consumption
3/4" composite impact wrench
Socket retainer Dual (hole + ring)
Clutch type Twin hammer
Insulating and lightweight composite handle
S2S easy forward reverse
Full teasing developed trigger

Handle type: Pistol
Square Drive: 3/4"
Working Torque Range (fwd): 407-1,464 Nm (300-1,080 ft.lbs)
Maximum Torque (reverse): 1,950 Nm (1,440 ft.lbs)
Free speed: 7,000 rpm
Blows per minute: 1,200
Net weight: 3.4 kg (7.4 lbs)
Power/weight ratio: 573.5 Nm/kg (194.6 ft.lbs/lb)
Length: 214 mm (8.4")
Side to center: 39 mm (1.53")
Average air consumption: 3.7 l/s (7.75 cfm)
Actual air consumption: 14.7 l/s (31 cfm)
Min. hose size: 13 mm (1/2")
Noise level: 97 db(A)
Sound Power: 108 db(A)
Vibration α (ISO-28927-2): 12.6 m/s²
Vibration K (ISO-28927-2): 3.4 m/s²
