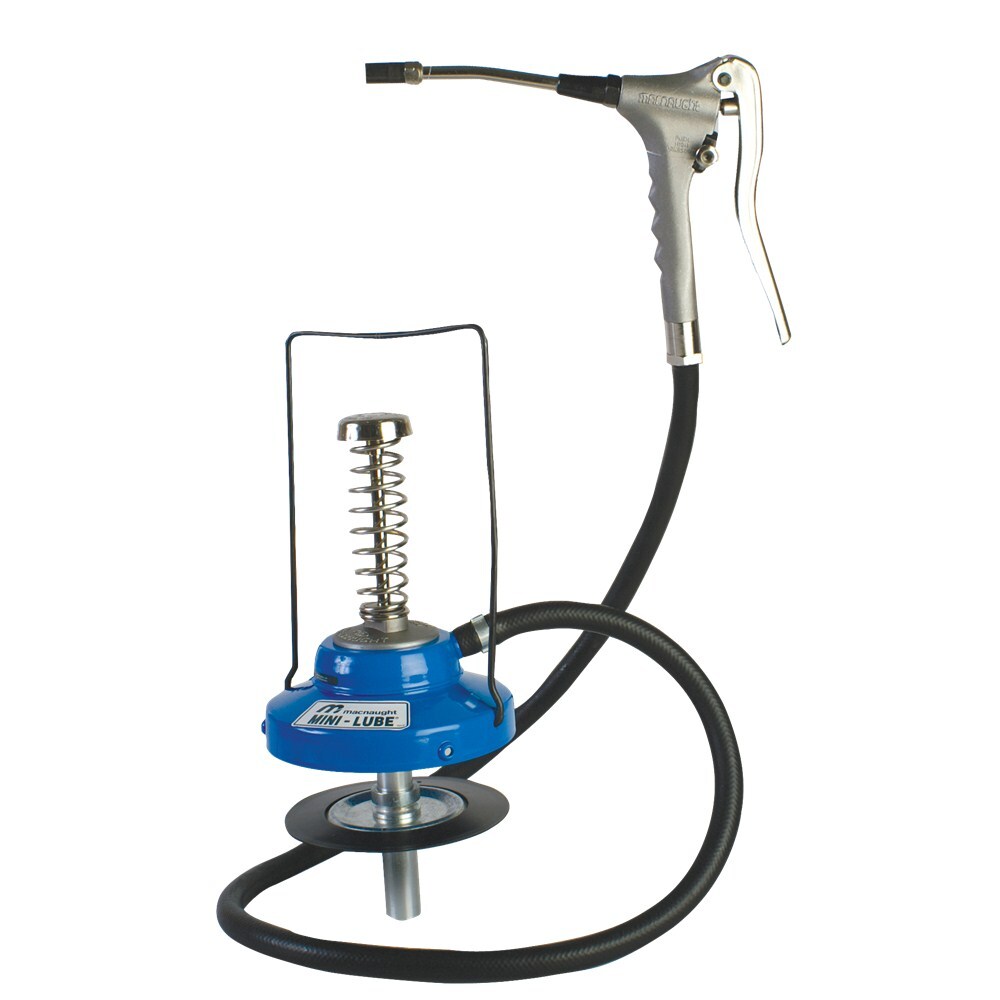

Macnaught K7 Portable High Pressure Greasing System K7-01

The K7 MINILUBE® Portable High Pressure Manual Greasing System provides high-volume/high-pressure greasing in a compact and portable package. It consists of two main components, a foot operated spring-loaded pump, that dispenses grease from the container to the hose and gun and a patented high pressure/high volume KR pressurite™ gun. When the gun is set on the “high volume” position the gun will deliver up to 5,000 psi and when set on the “high pressure” setting the gun will deliver a lower volume of grease, but at higher pressures ( up to 10,000 psi). The K7 is an economical alternative to the more expensive air-operated greasing systems.

Features:
Compatible with 2.5kg containers
Can be used as a backup for power operated systems - In case of a systems malfunction or breakdown eg. power failure.
Manual greasing system - Suitable for users who need a high-pressure greasing capability but don't have or can't use air-powered equipment.
Light weight and portable - Holds more grease than a conventional handgun so it can be easily transported to the application.
Up to 6 times the grease capacity of a cartridge - less down time changing grease cartridges
Self air bleeding system when first used - No air purging necessary when changing containers
Manually operated & light weight with carry handle - Portable go anywhere system.
2 way KR patented Pressurite Gun - Two grease guns in one
High pressure / High volume switch - Can deliver up to 5,000psi on the high volume setting or 10,000psi on the high pressure setting
Pressurite gun offers high volume greasing up to 5,000psi - High volume greasing offers superior performance compared to hand held manual grease guns
Pressurite gun offers high pressure greasing up to 10,000psi - Air operated performance, clears blocked or damaged grease nipples
Fully sealed greasing system - Clean grease to the bearing every time
Handles most greases up to NLGI No.2 viscosity - Versatility of use
Easy push-down foot operated, spring loaded pump - Provides 30 shots at the gun, no pressure developed in container, allows one-handed operation
Rubber edged follower plate - Wipes container clean to use all of the grease in the container, prevents air pockets and contamination
KY Supergrip™ Coupler - Positive, no leak connection. Ensures grease gets to the bearing
Inbuilt grease strainer - Ensures clean grease to the bearing
Fully repairable - Provides a longer service life
1.5m grease delivery hose - Easy to reach difficult applications, transfer only / Maximum 280psi
360° swivel to gun - Prevents hose kinking / twisting. Easy one handed operation
Range of push-on / quick release greasing accessories available - Increased versatility / flexibility for dif- ferent applications

Specifications:
High volume delivery pressure up to 34,450kPa (5,000psi)
High pressure delivery pressure up to 68,900kPa (10,000psi)
Provides up to 30 shots of grease with each prime
KY SUPERGRIP™ 3 jaw high pressure coupler
Up to 0.45g per shot (High pressure setting)
Up to 1.25g per shot (High volume setting)
Maximum viscosity - Up to NLGI 2
Compatible with 2.5kg grease containers for contamination free greasing or bulk fill via a J3 Transfer Pump
Wetted parts - Aluminium, steel, nitrile rubber
1.5m Flexible delivery hose

Includes:
K7 MINILUBE® Portable Greasing system
KR PRESSURITE gun
1.5m Flexible delivery hose
Follower plate
