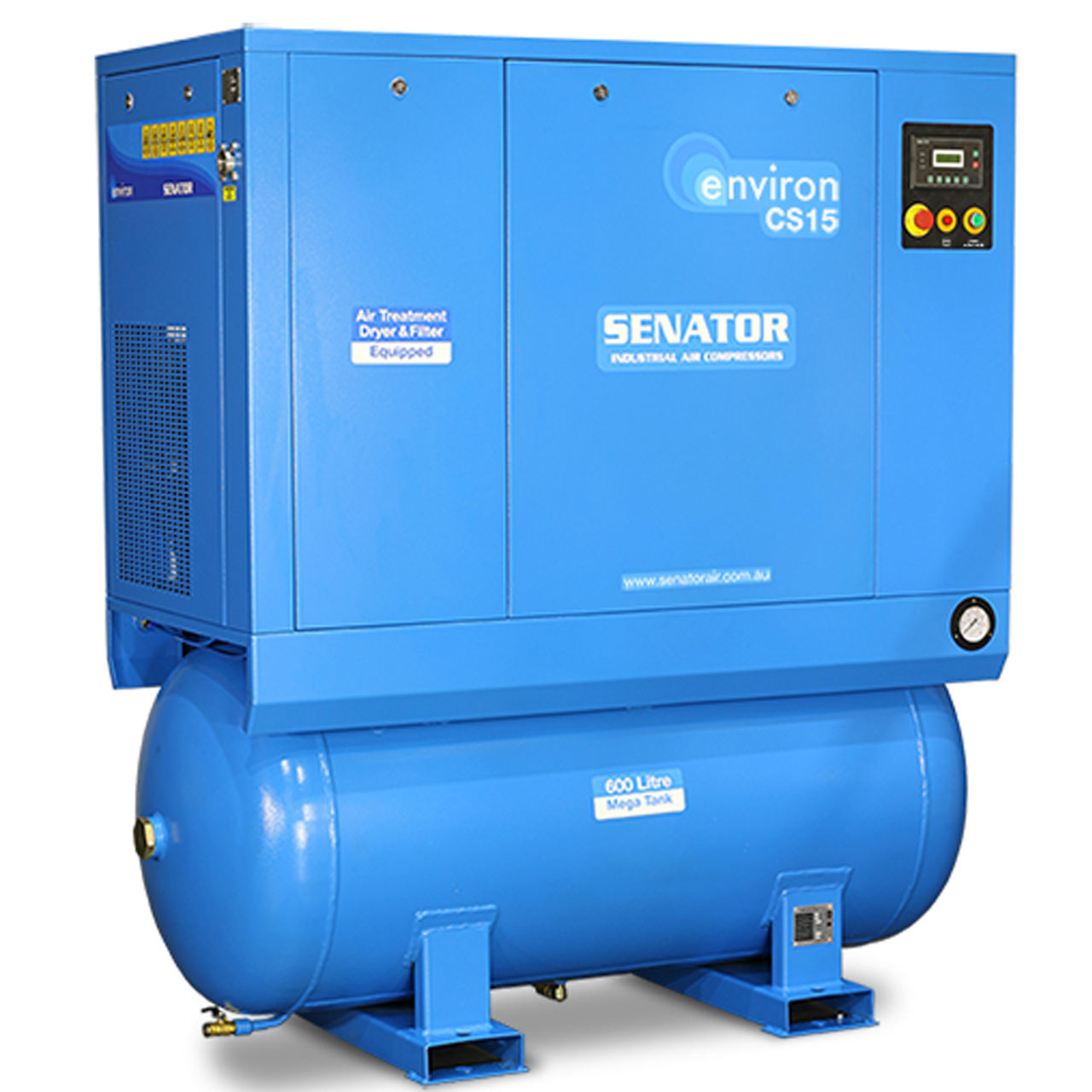

Senator CS15 Rotary Screw Air Compressor 20HP FAD 87CFM
Features:
Compact turn-key compressed air station offers a convenient plug-andplay solution with the lowest installation cost and space requirements
Soundproofed cabinet and antivibration mounting of rotating components enables the unit to be installed directly at the work site
Precision technology rotary screw air-end with advanced rotor profile and slow rotor speed ensures 24/7 reliability, high flow rate, low energy consumption and long service life
High efficiency, MEPS compliant electric motor reduces energy consumption and carbon footprint
7, 8 and 10 bar (102, 116 and 145psi) outlet pressure capability that is suitable for a broad range of compressed air applications
Largest-in-class 600 litre air receiver tank provides ample air storage capacity to prevent excessive system pressure fluctuations and facilitates more effective condensate removal
Star-delta motor starter on CS models reduces both peak electrical demand and mechanical shock-loading during compressor start-up
Microprocessor-based variable speed drive (VSD) on CSV models provides optimised motor speed and power control under all operating conditions
Multi-function electronic controller with LED display serves as a userfriendly interface for compressor operation, systems monitoring and protection, and maintenance scheduling sequential control and remote start/stop capable
Refrigerant dryer in its own thermally segregated compartment continuously removes moisture from the compressed air stream
Two compressed air filters with element condition gauges remove particulates down to 0.01 micron and limit oil carry-over to 0.01 ppm
Timer drain valves plumbed to a single connection point facilitate automatic, clean and safe disposal of water condensate from the air receiver tank, dryer and filters
Lift-off cabinet panels are easily removable for maintenance access
Spin-on oil filter and air/oil separator elements minimise service downtime
Compliant with Australian Workplace Health and Safety Regulations for industrial workplace use
Specifications:
Motor Power: 15 kW (20 hp)
Free Air Delivery: 2.45 m³/min (87 cfm)
Working Pressure: 8 bar (116 psi)
Optional Pressures: 7-10 bar (102-145 psi)
Tank Volume: 600 Litres
Air Treatment: Dryer, Pre- & Post-Filters
Noise Level @ 1 m: 72 dB(A)
Air Outlet: 1" BSP Female
Dimensions: 173 x 78 x 187cm
Weight: 704kg
Includes:
Rotary Screw Air Compressor
Refrigerated Air Dryer + Pre and Post Filters
Receiver Tank 600L
