Leica LG6008612 Rugby 610 Rotating Laser
Fit, fast, tough – Select the perfect team player for your site
Leica Rugby lasers are the toughest rotating lasers suitable for all construction applications. Level, align and square much quicker than ever before, eliminating costly errors and downtime.
The Leica Rugby 610 excellent general construction laser level providing an a tough, affordable and easy to operate self-levelling option within the Leica Rugby 600 range.
The Leica Rugby 610 aligns and levels faster than before, whilst the single button operation eliminates possible mistakes increasing performance.
Developed as part the Leica Rugby 600 series, The Leica Rugby 610 is protected to IP67 dust and water protected and has a glass cage for industry leading protection. The tough housing protects the instrument and incorporates over molded rubber handles for increased grip to provide ultimate protection.
Working Range
The Leica Rugby 610 offers a greater working range, with up to 600m operating diameter.
Self-Levelling Always On
Setting-up the Leica Rugby 610 is very simple; the instrument will automatically turn on with the self-level activated.
H.I. Alert
The H.I. or Elevation Alert function monitors the levelling of the laser beam. Any significant disturbance or movement will cause the alert function to activate. The Leica Rugby 610 will stop operation and will sound an alarm to prevent possible errors.
Out of Level Indication
During normal operation, the Leica Rugby 610 continuously self-levels. Small vibrations and disturbances may cause an out of level condition. The head will stop momentarily and the emission LED will blink until the unit re-levels and work can resume.
Enhanced Your Performance
Enhance the Leica Laser Rugby 610 with additional accessories. When in the field and limited power supplies are available, utilise the environmentally friendly A170 Solar Panel, power from a vehicle with a car charger or any battery with the 12v battery cable.
Leica Rugby 610 rotating laser - One button simplicity
Simple and reliable, one button laser where no mistakes are possible
Superb performance with all Leica Rod Eye receivers – extend your working range using the Rod Eye 140 Classic and the Rod Eye 160 Digital
Technical data: Leica Rugby 610
Dimensions: 212 × 239 × 192 mm
Weight: 2.38 kg / 5.2 lbs
Functionality: Self-levelling horizontal, one button laser
Product type: General construction
Laser class: Class 2
Laser type: 635 nm (visible)
Measured at 20°C (horizontal / vertical): 2.2 mm at 30 m (3/32" at 100 ft)
Rotation – RPS: 10
Range (diameter) – Basic: 500 m (1.650 ft)
Range (diameter) – RE140/160: 600 m (2.000 ft)
Li-Ion batt. / hours operation: 40+
Alkaline batt. / hours operation: 60+
Working temperature range: –10 to +50 °C (14 to +122 °F)
Storage temperature range: –20 to +70 °C (–4 to +158 °F)
Seal (both excluding and including battery pack): IP67
Warranty: 3 years no cost (see PROTECT by Leica Geosystems policy for life time coverage)
Kit Includes:

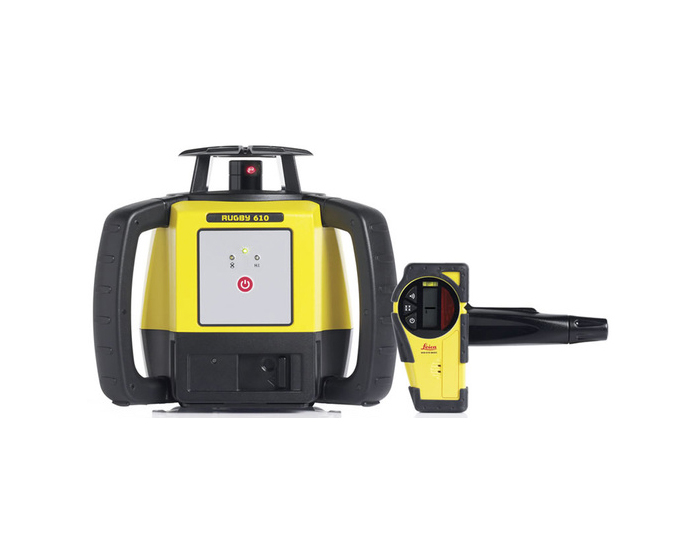

Leica Rugby 610 Rotating Laser
Alkaline Batteries
Receiver
Heavy Duty Carry Case
